CONTROL PRODUCTS : PRODUCT 08



Phase & Voltage Protection

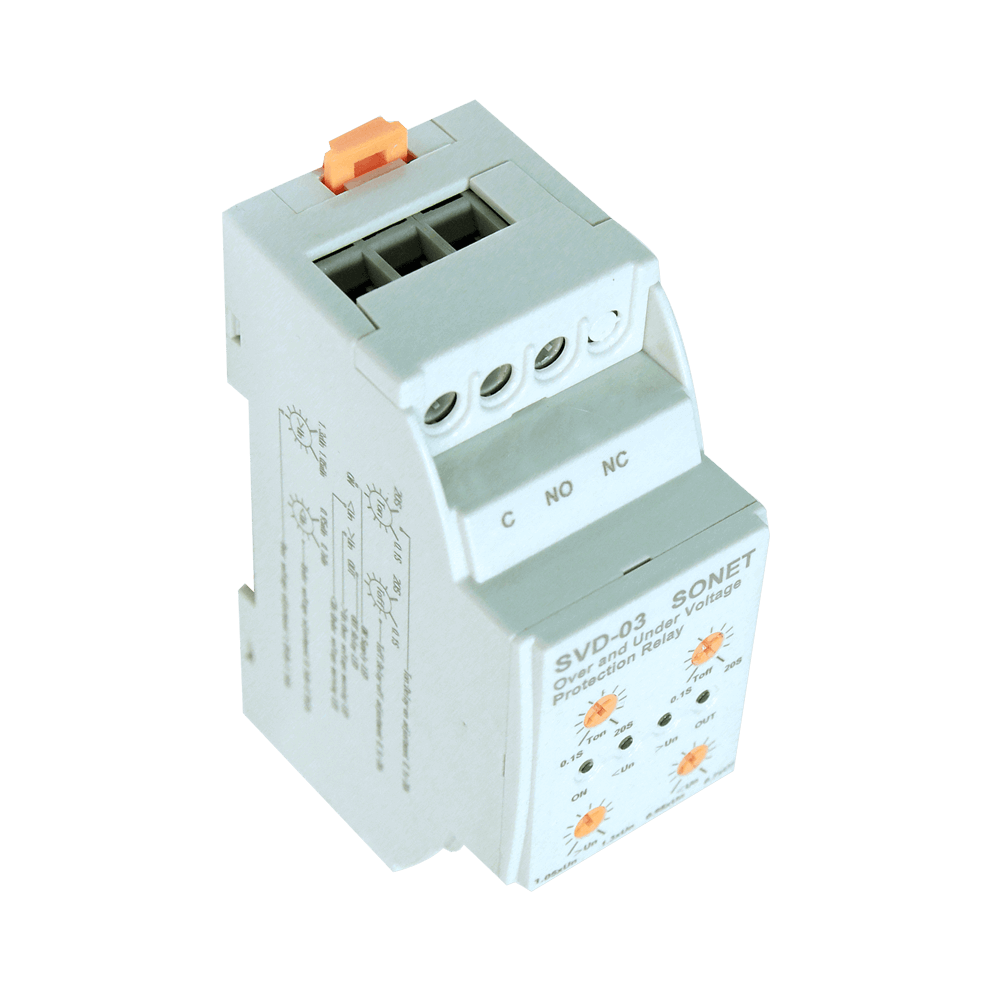

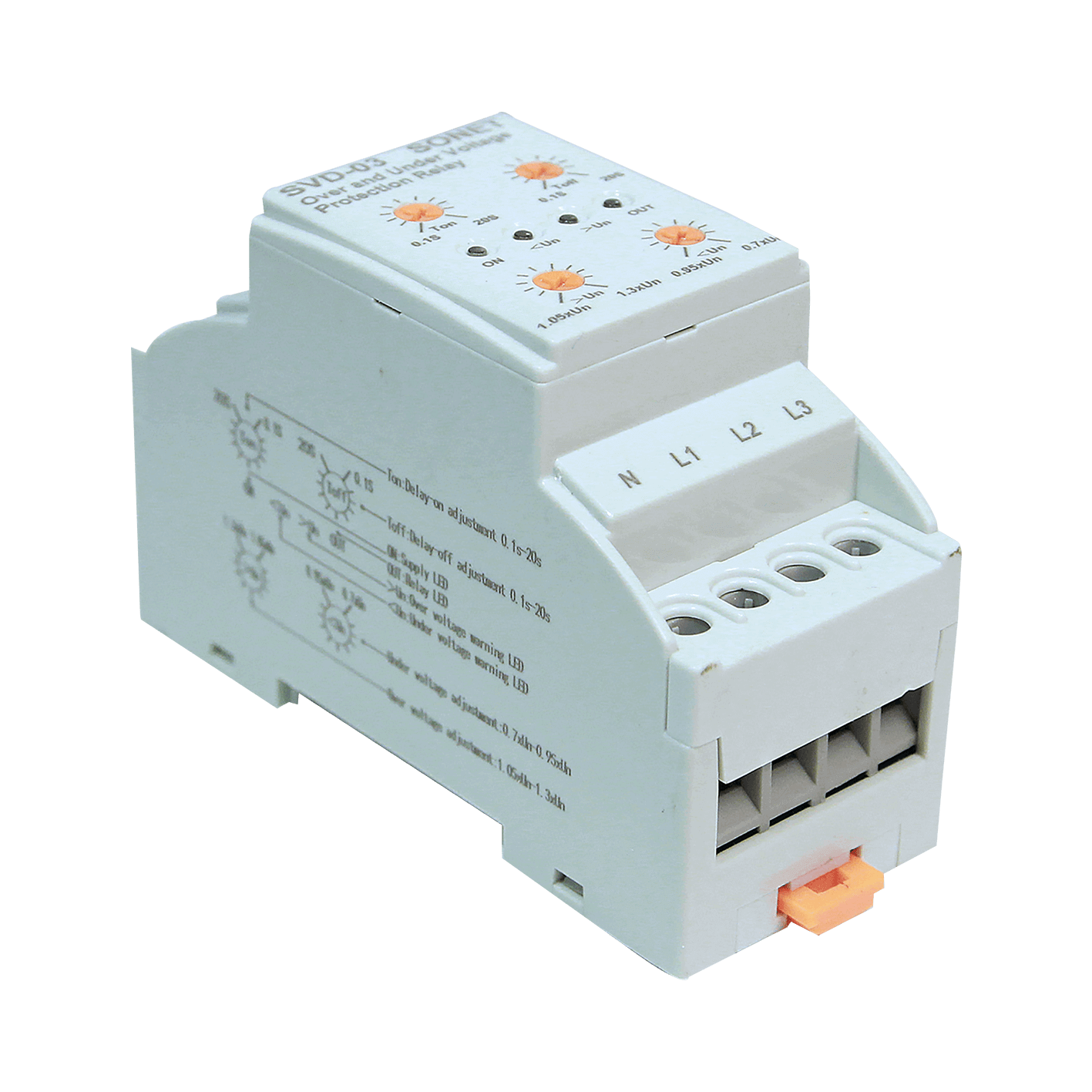

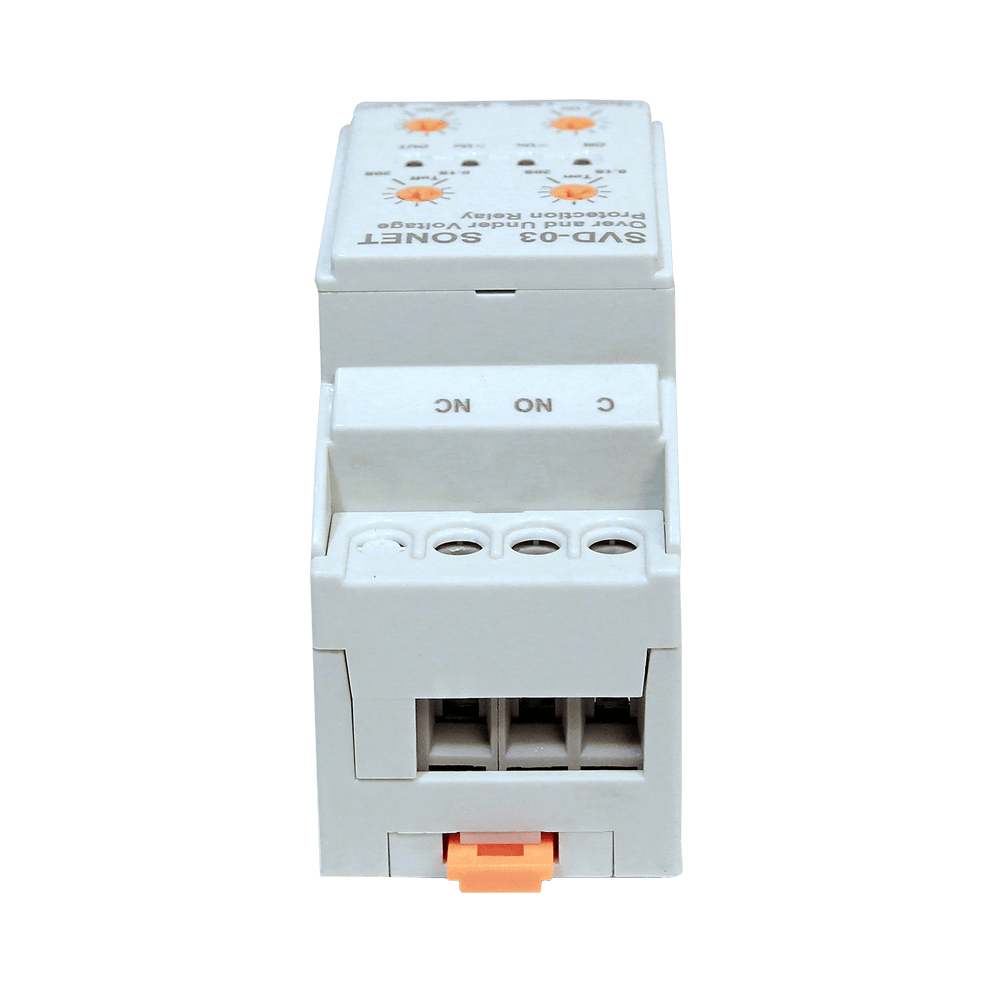

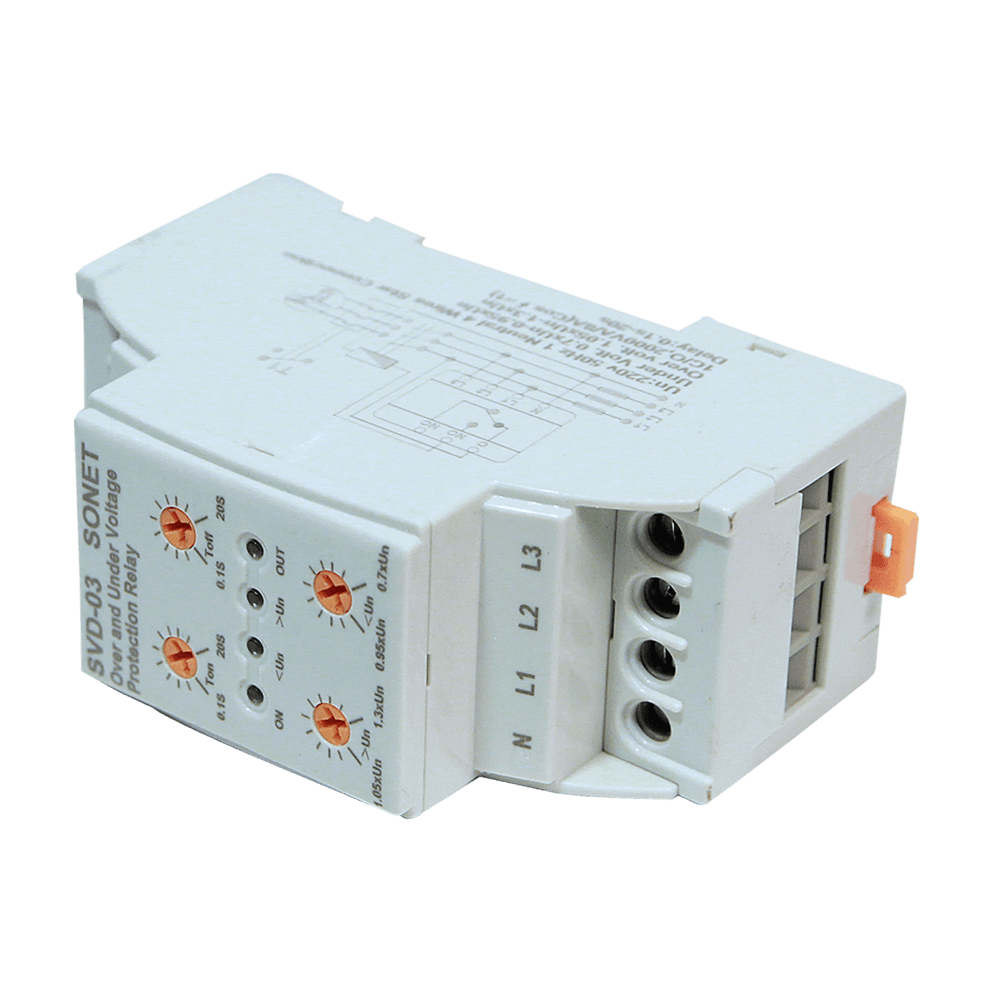

SVD-03

SONET's SVD-03 operates on 1-phase & 3-Phase, when phase voltages are all normal the OUT light will turn on, relay contact will be energized and when there is default phase or phase sequence errors the OUT light will off, the relay will de-energizes its contact.

Get a quote


  • img
  • img
  • img
  • img

Key Features

  • Protection against under & over voltage.
  • Protection against phase failure.
  • Indications and variable for voltage & delay setting.
  • Under Voltage Scale (Adjustable 160-205VAC).
  • Over Voltage Scale (Adjustable 240-285VAC).

Product Specifications

  • Model:SVD-03
  • Rated voltages:1 & 3 phase, 1 neutral
  • Contact current:Max 5A 240vac
  • Network type:AC
  • Frequency:50/60Hz
  • Rail Mounted:Yes
  • Device protection class:IP20
  • Temperature:-10 to +50°C
  • Dimensions (mm):36 x 96 x 60
