Phase Angle Protection

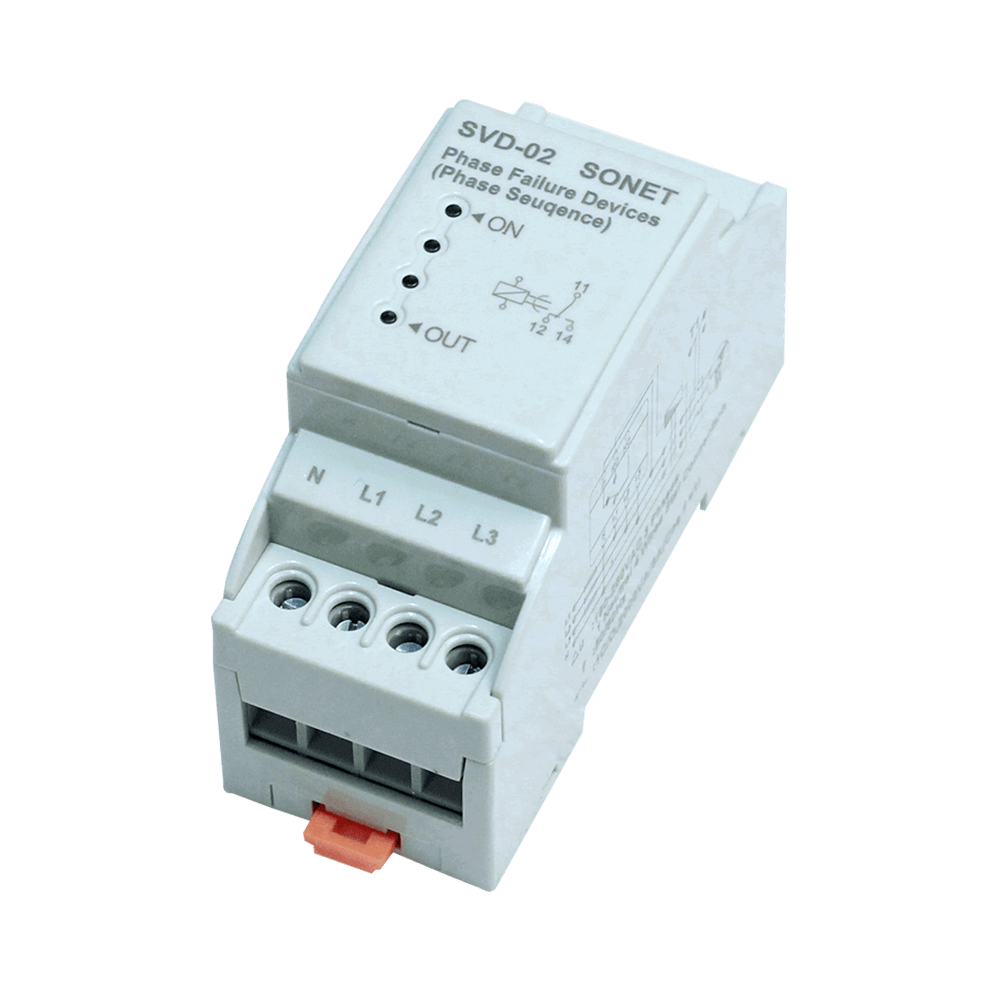

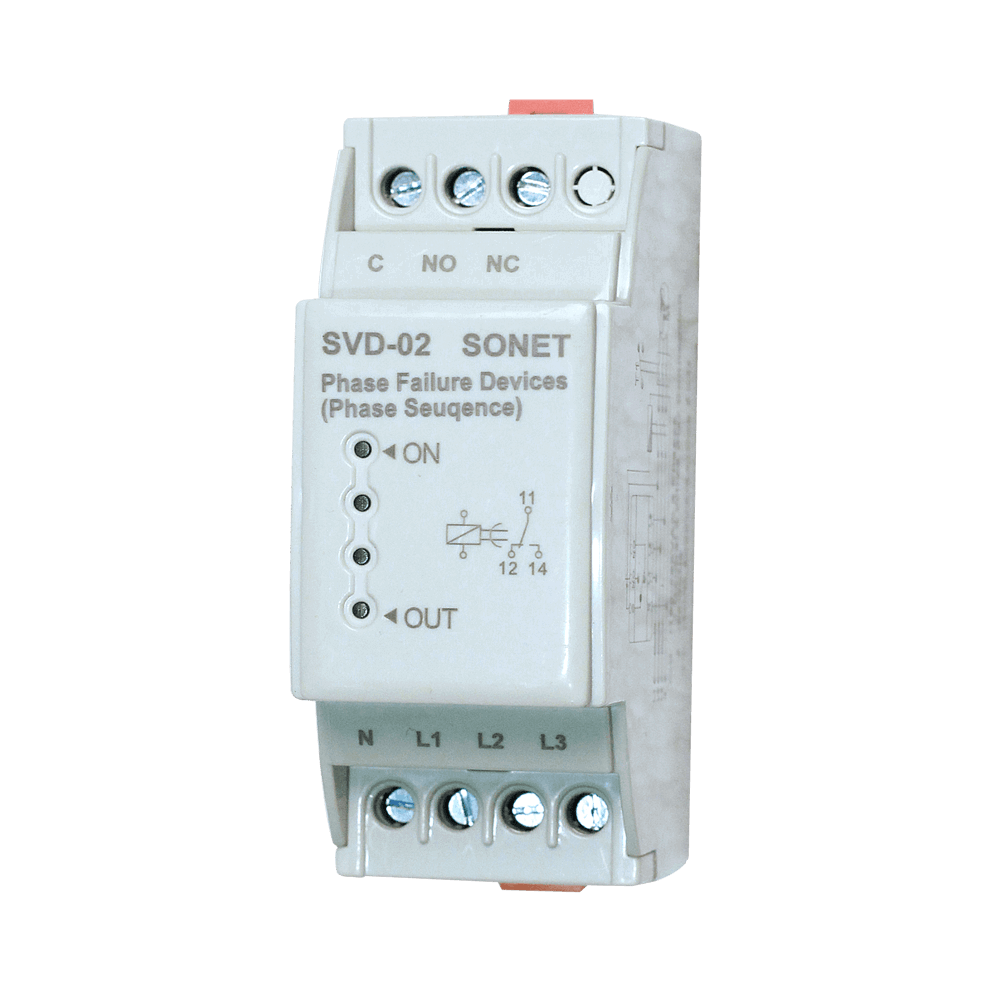

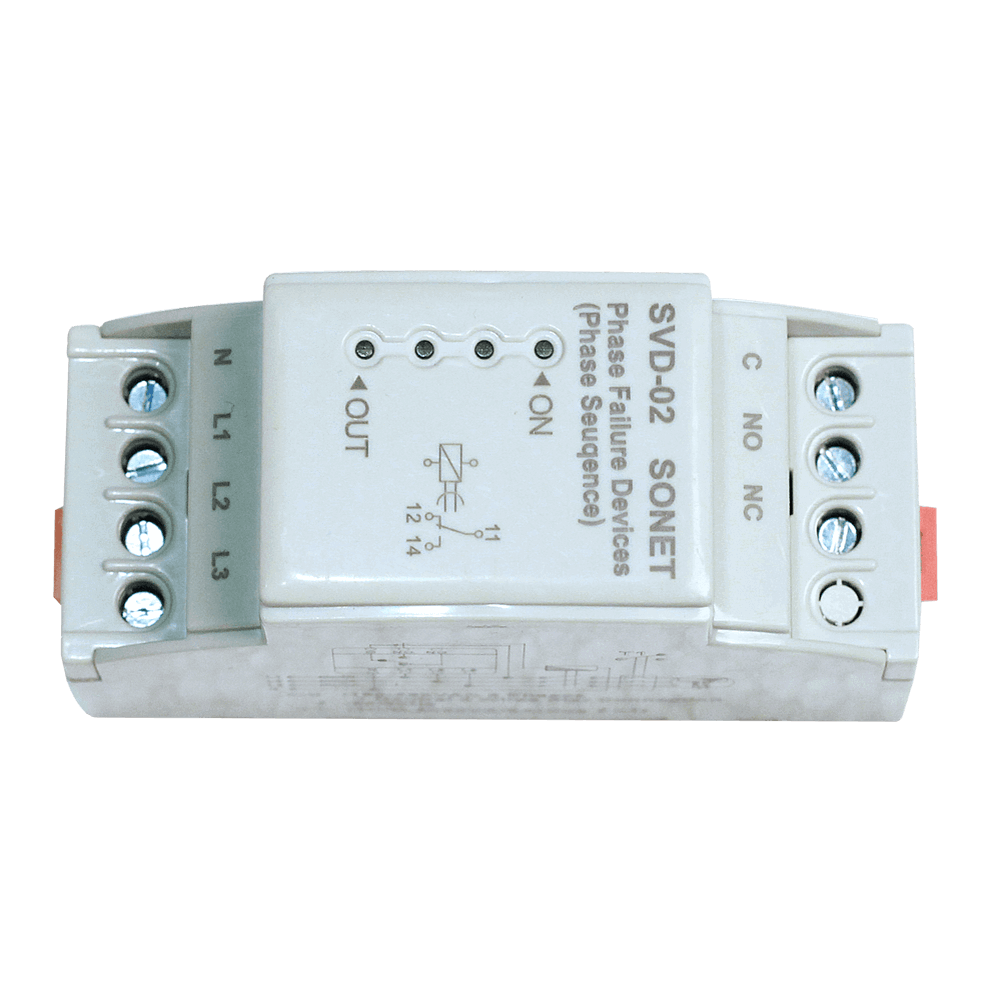

SVD-02
SONET's SVD-02 operates on three-phase, when phase sequence and phase voltage are all normal the OUT light will turn on, relay contact will be energized and when there is default phase or phase sequence errors the OUT light will off, the relay will de-energizes its contact.
Key Features
- Protection against wrong phase angle.
- Protection against phase failure.
- Indications from (ON) power to (OUT) normal.
Product Specifications
- Model:SVD-02
- Rated voltages:3 phase, 1 neutral
- Contact current:Max 5A 240vac
- Network type:AC
- Frequency:50/60Hz
- Rail Mounted:Yes
- Device protection class:IP20
- Temperature:-10 to +50°C
- Dimensions (mm):36 x 96 x 60
