CONTROL PRODUCTS : PRODUCT 01

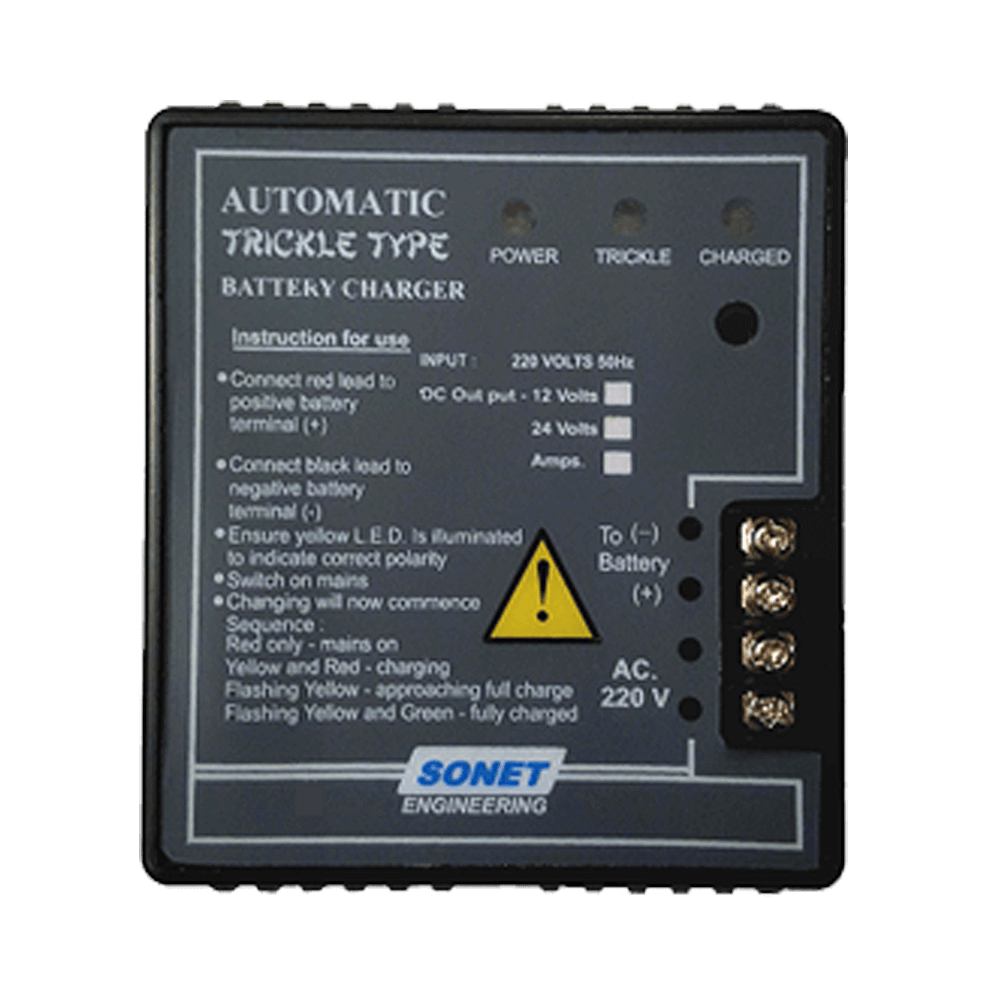

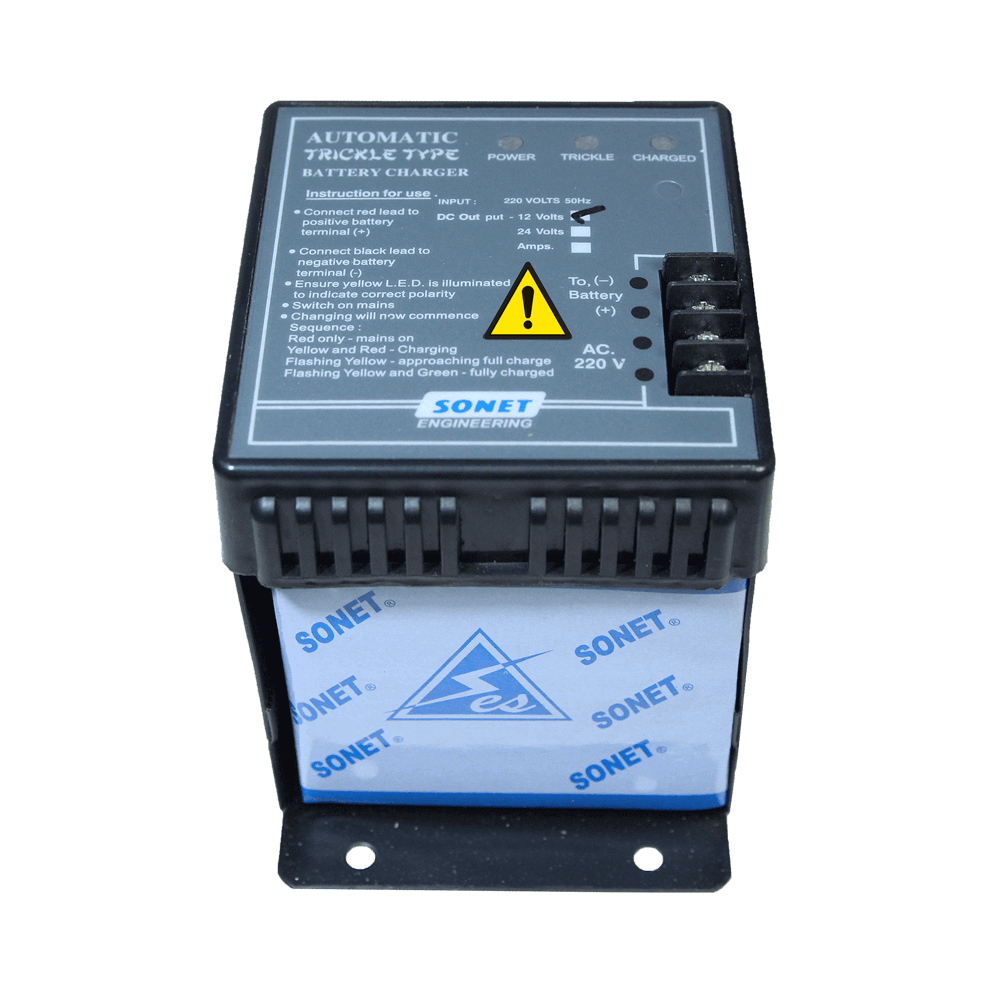

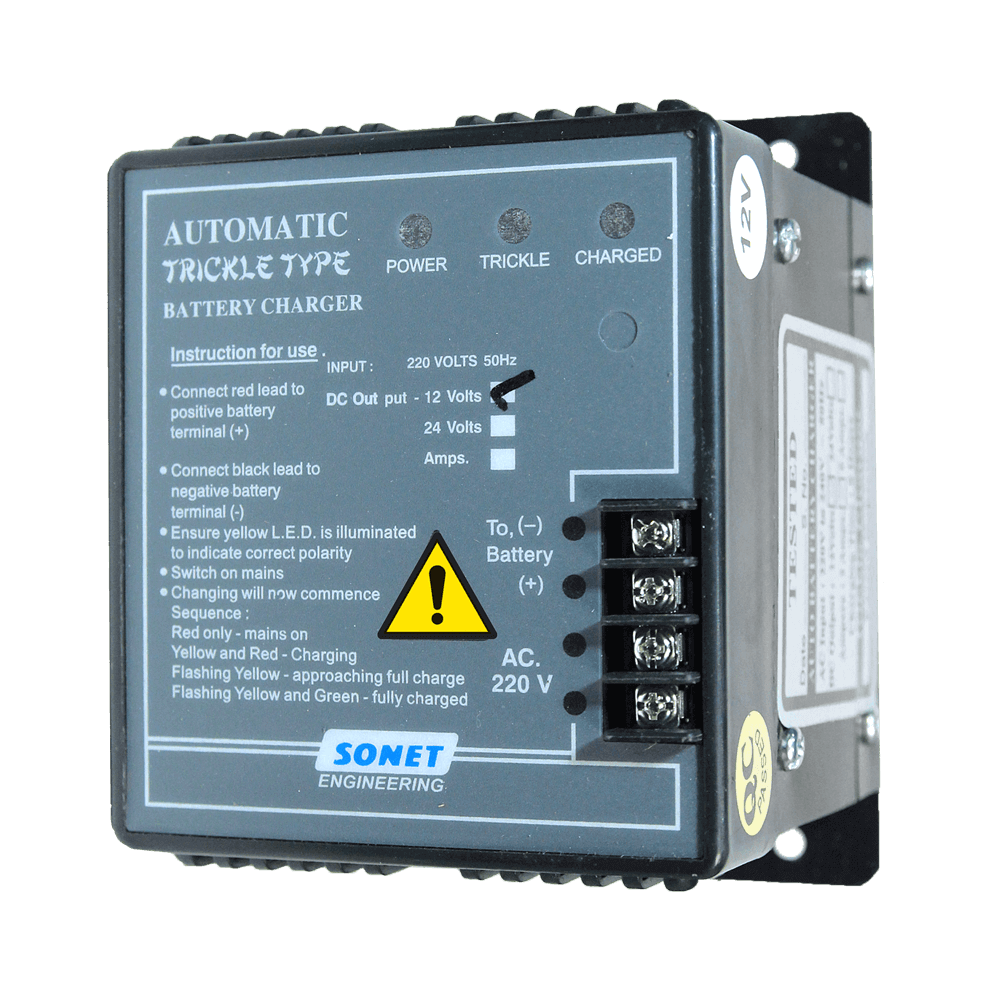

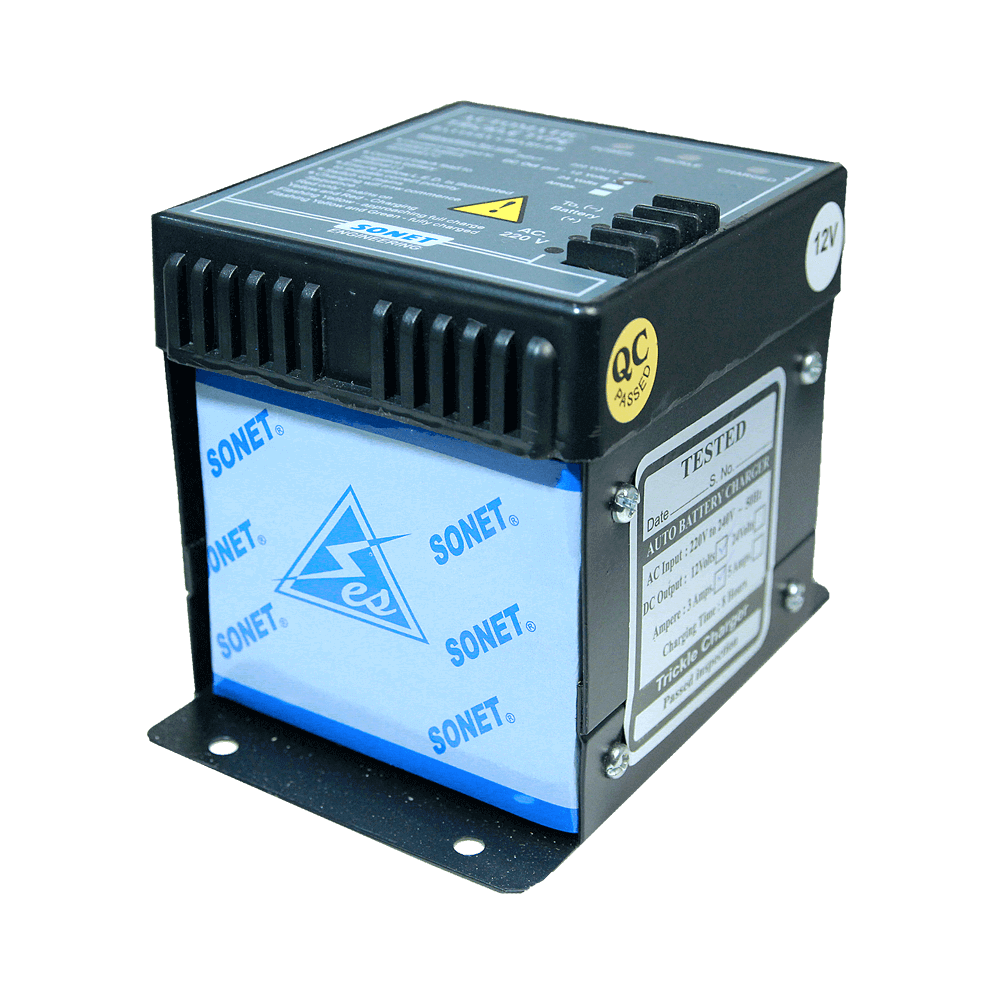

AUTOMATIC BATTERY CHARGER

ABC-3A

SONET's automatic trickle type battery charger monitors the battery and delivers the current as much as the battery required up to its maximum rate of charging, once the battery is fully charged the charger will provide a low trickle charge to prevent the battery from over charging, short circuit, reverse connection and other factors. The trickle type battery charger is designed to provide smooth charging to the battery with constant voltage and current..

Get a quote

  • img
  • img
  • img
  • img

Key Features

  • Extents battery life up-to 30%.
  • LED indications for power, trickle and charging
  • Highly reliable for extreme temperatures.
  • Protection for short circuit, reverse polarity and over charging.

Product Specifications

  • Model:ABC-3A
  • Maximum amperes:3 Amperes
  • Input voltage:220V-AC
  • Output voltage:12-14V-DC
  • Power supply:180-260vac ~ 50/60Hz
  • Panel mounted:Yes
  • Temperature :-10 ~ +55°C
  • Humidity :0-90 (Non condensing)
  • Dimensions (mm):134 x 90 x 104
  • Weight:2.2Kg
